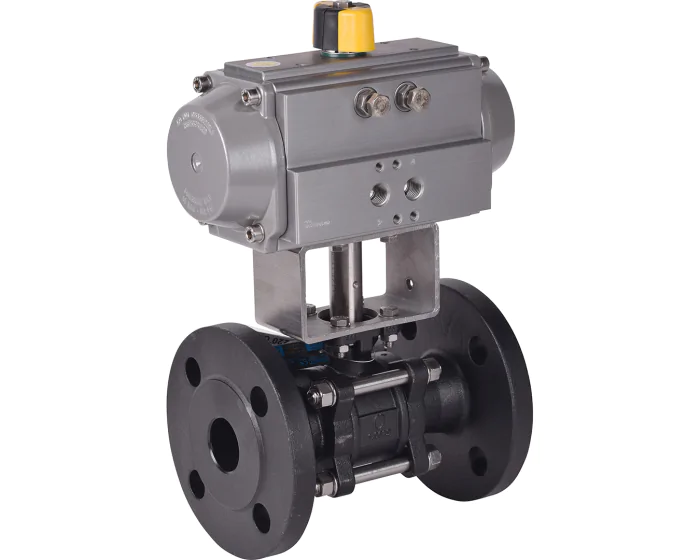

The 710 XS series 3-piece ball valve has a 1.0619 carbon steel body, a stainless steel ball and PTFE/stainless steel seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 40 bar, TS: 200°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 350.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE - Graphite |
| PS (bar) | 40 |
| Connections | Flanged PN40 |
| Seats | PTFE-Stainless steel |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Double acting | 271312017006XR | S1001725 |
€303.39
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Spring return | 271312017106XR | S1001726 |
€328.86
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Double acting | 271313017006XR | S1001727 |
€328.86
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Spring return | 271313017107XR | S1001728 |
€381.89
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting | 271314017006XR | S1001729 |
€328.86
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Spring return | 271314017107XR | S1001730 |
€381.89
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Double acting | 271315017006XR | S1001731 |
€339.46
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Spring return | 271315017108XR | S1001732 |
€498.59
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting | 271316017007XR | S1001733 |
€434.93
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Spring return | 271316017109XR | S1001734 |
€657.70
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting | 271317017008XR | S1001735 |
€562.21
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Spring return | 271317017110XR | S1001736 |
€723.47
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN65 - 2''1/2 Double acting | 271318017008XR | S1001737 |
€806.21
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN65 - 2''1/2 Spring return | 271318017110XR | S1001738 |
€965.33
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN80 - 3'' Double acting | 271319017009XR | S1001739 |
€1,082.01
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN80 - 3'' Spring return | 271319017111XR | S1001740 |
€1,326.00
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' Double acting | 271320017010XR | S1001741 |
€1,463.90
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' Spring return | 271320017112XR | S1001742 |
€1,743.27
(excl. btw)
|
add to cart |
